FX2LPMini


FX2LPMini, just a Cypress USB CY7C68013A MCU (aka "FX2LP") mini breakout board.

Features:

  • ready to run
  • minimal component count
  • includes EEPROM for own PID/VID
  • 2.54mm "Square Pad Board" ready
  • ...


Just a reconstruction from the original 2005 V1.0 version, whose documents were destroyed during a power supply burnout... Fit, form and function compatible.


Hardware

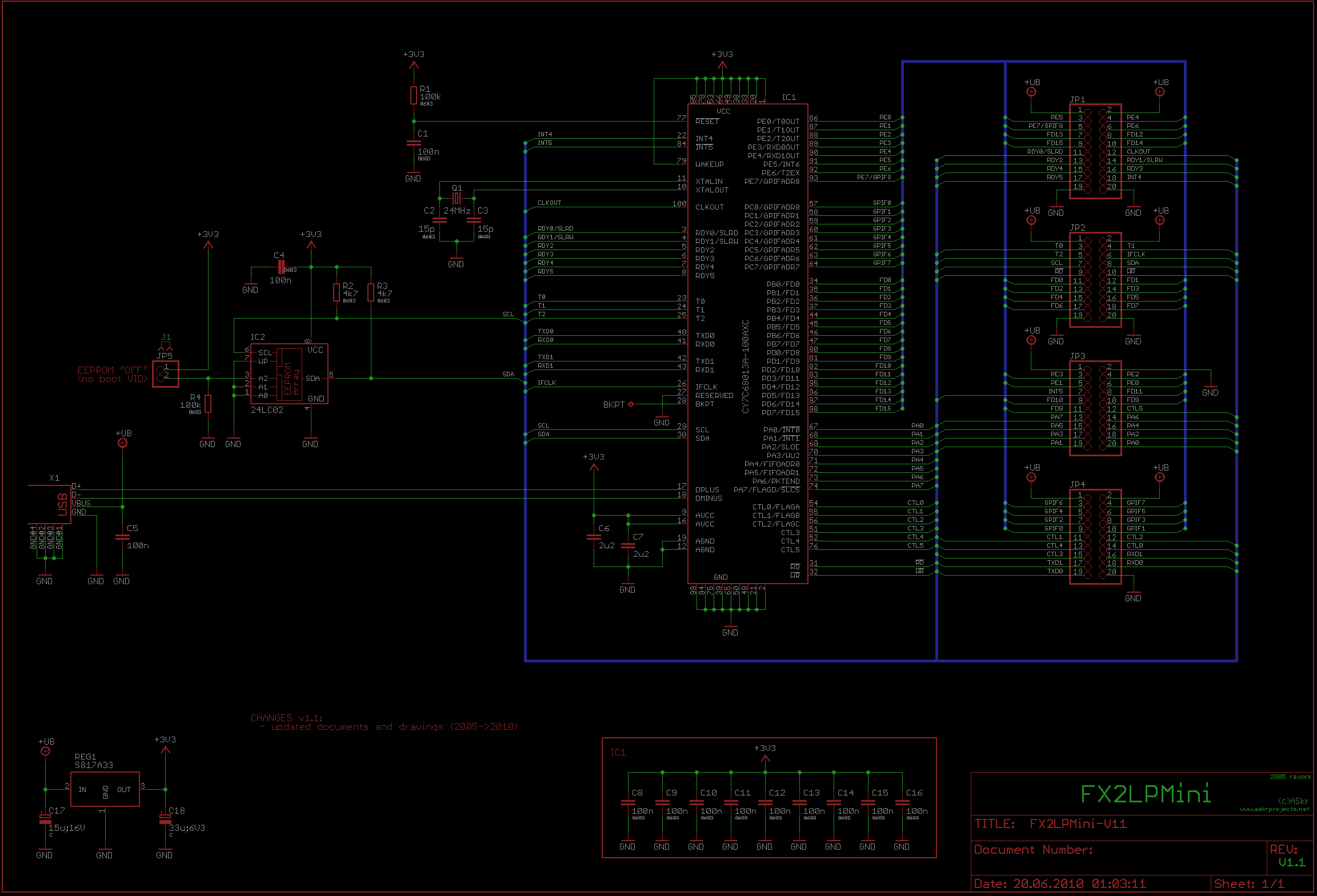

schematic

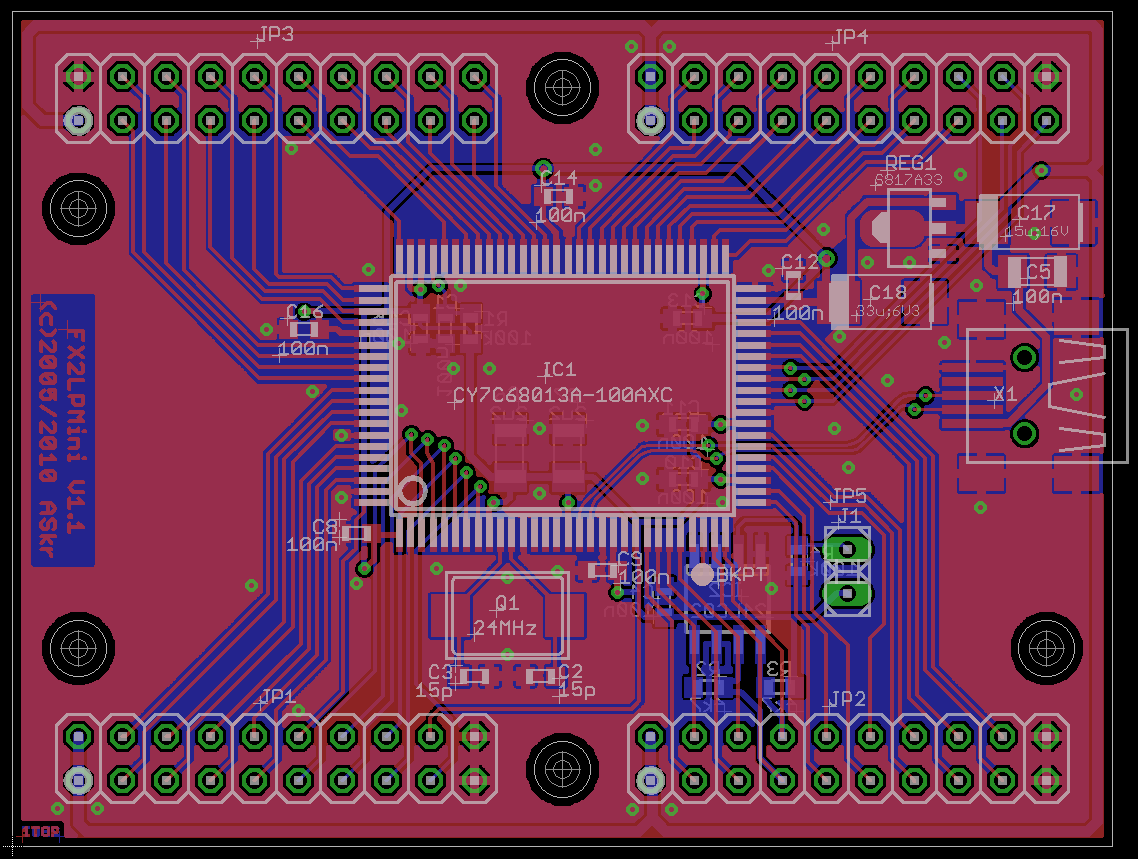

 layout
There is not much to say about this little project.
If you never heard of something like "CY7C68013A", you probably won't need this...

Except for "BKPT", "WAKEUP", "RESET" and USB D+, D-, all MCU pins are routed to the 2.54mm pin headers.

JP5 (J1) selects the I2C address of the 24LC02 EEPROM. If no jumper is attached, the address is '0x00', otherwise '0x04'. In this case, you still have the option to "boot" with an external EEPROM if its address is <'0x04'.

All four pin headers are aligned such that a 2.54mm prototype board can sit on top (or on the other side if you solder them that way ;-).

Well, the rest should be self explaining...

Headers can be on top or bottom of the board, angled, male, female....


Oh wait, one more thing:
Beware of short circuits at the connectors! USB's VBUS is directly connected there!
(and note #2: Yes, it's VBUS (4.4 - 5.0V), not the internal 3V3 [just in case you missed this]).


Software

Some of the original files could be restored from the damaged harddisks.
They will be available here (not that much for now ;-).


Some Useless Pics

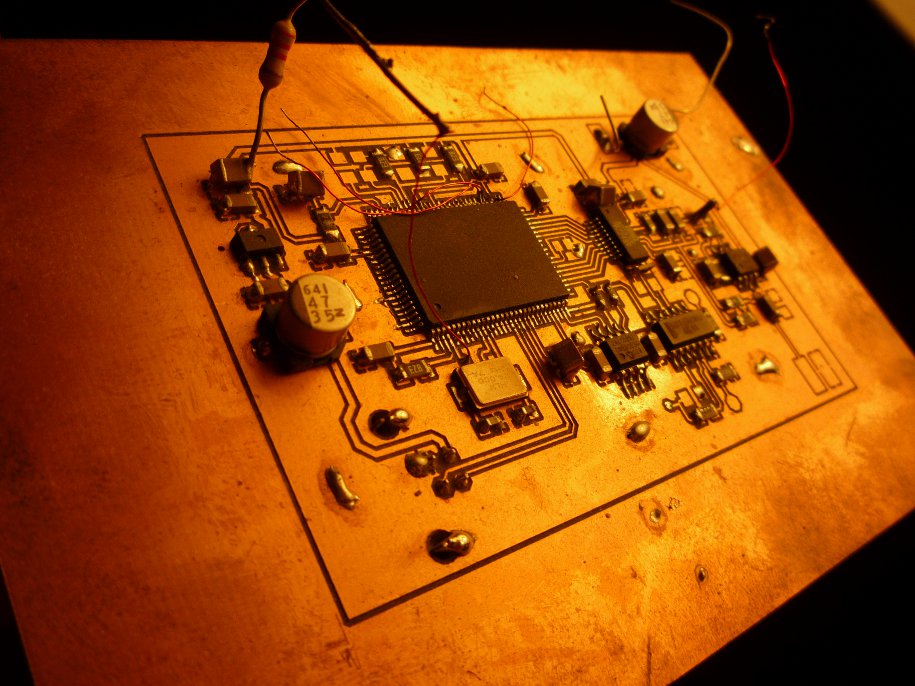

One of the (few ;-) good reasons to
build a FX2LPMini: You don't sacrifice
a 10 Euro chip for every bullsh*t ;-)

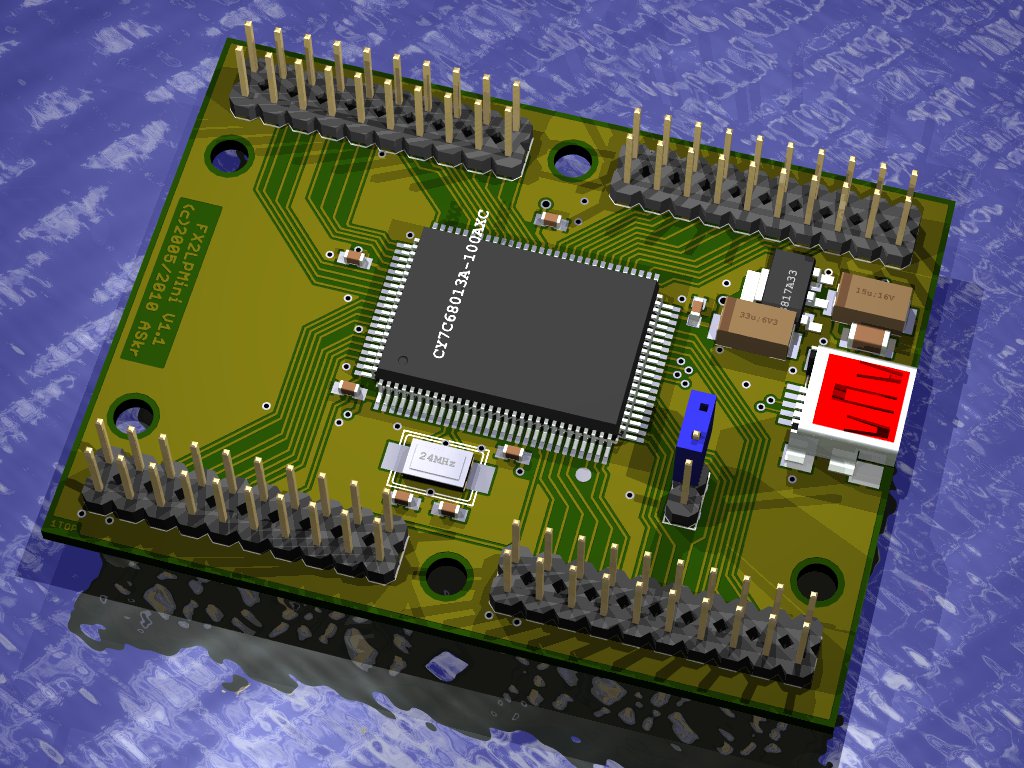

(like my SDR, here...) 		Constantly improving,
but still no 100% 3D match...

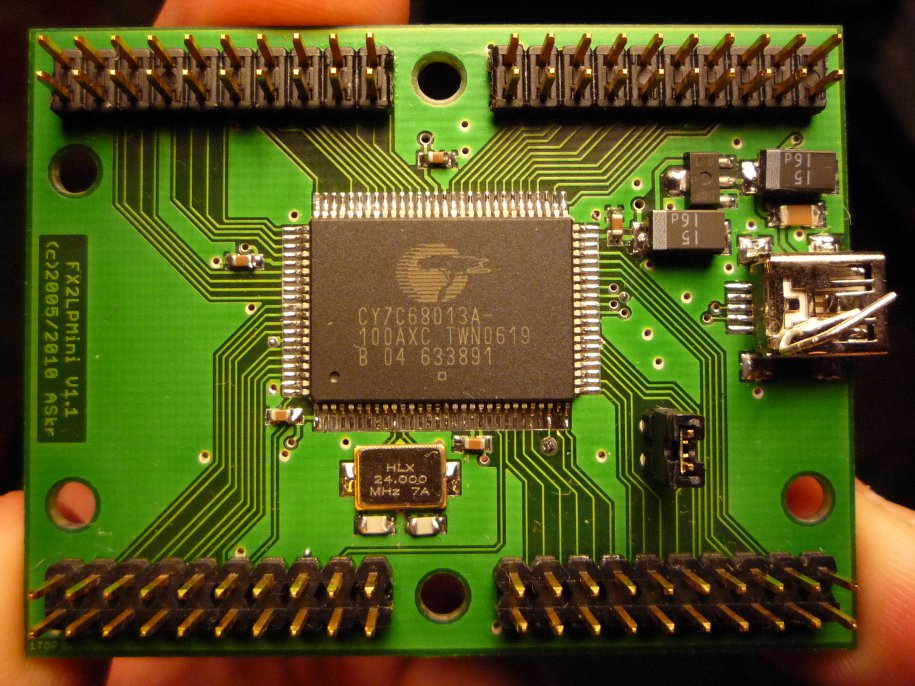

the real hardware...


Download

FX2LPMini:

Includes:
- schematic (PDF)
- placement (PDF)
- layout, eagle (BRD)
DOWNLOAD: fx2lpmini_hard_V11.zip HW; V1.1




ASkr 04/2005: initial public release (V1.0)
ASkr 06/2010: reconstruction (V1.1)
