H-Bridges


Some H-bridges and other motor driver stuff...

MicroHBridge

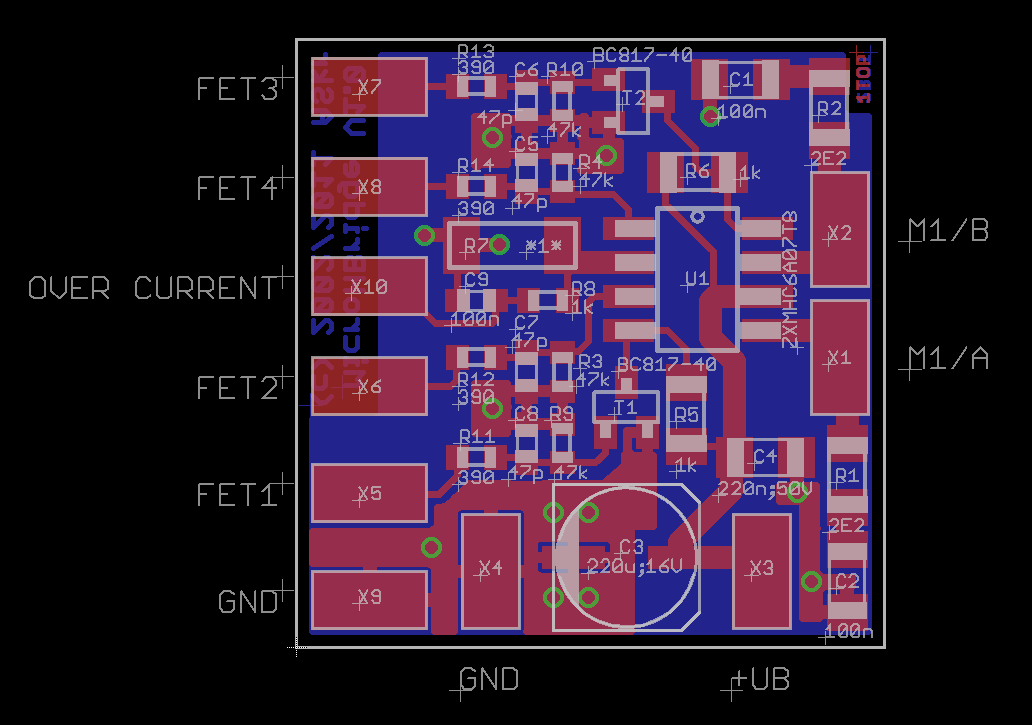

simple...

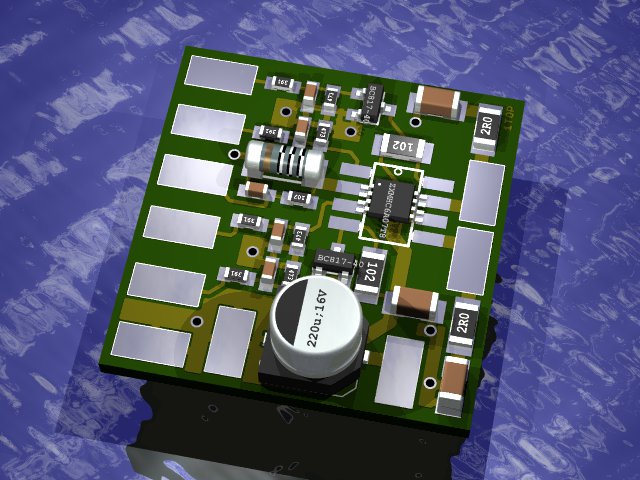

... standard stuff
almost...

no text yet...

PIC-HBridge

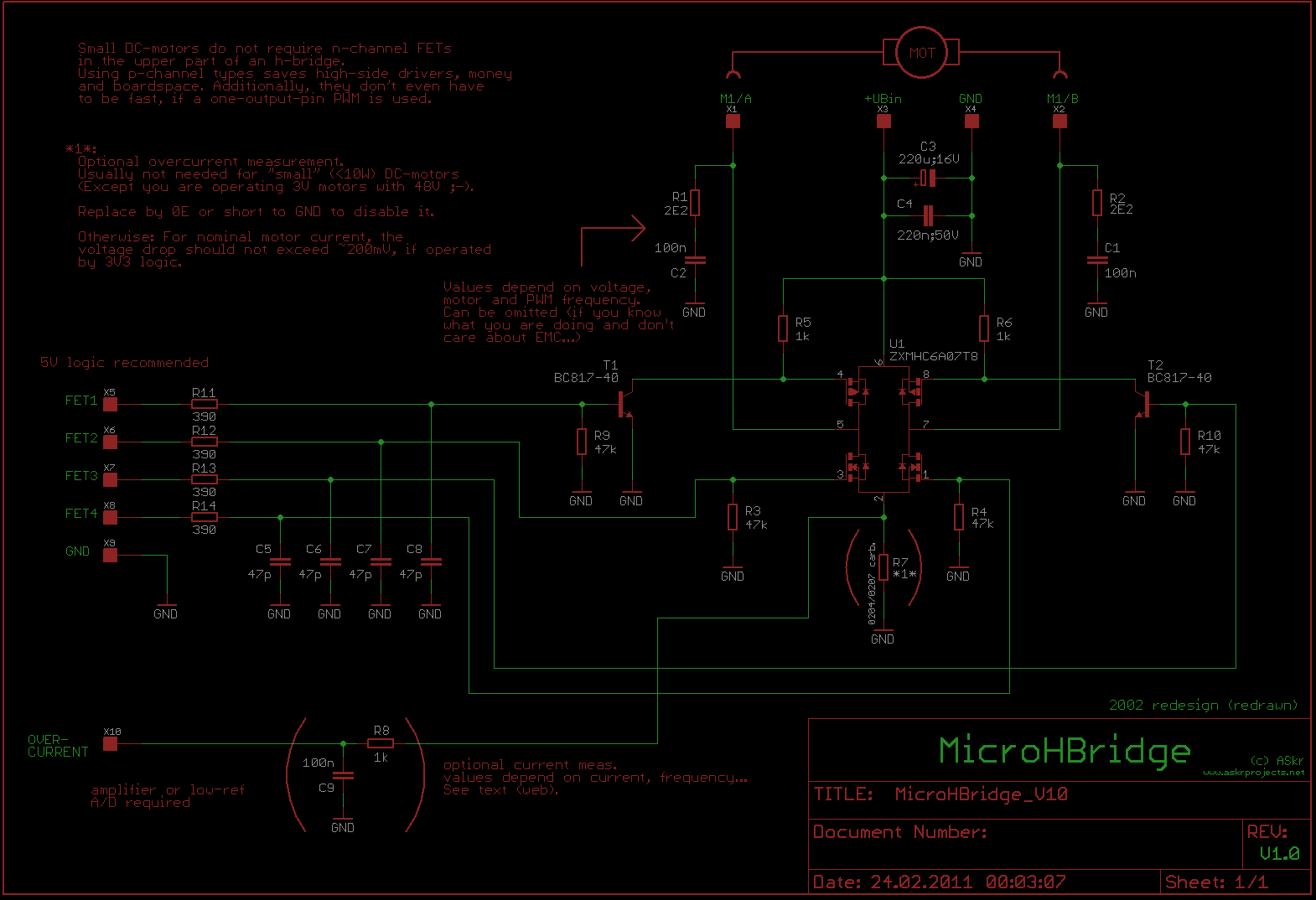

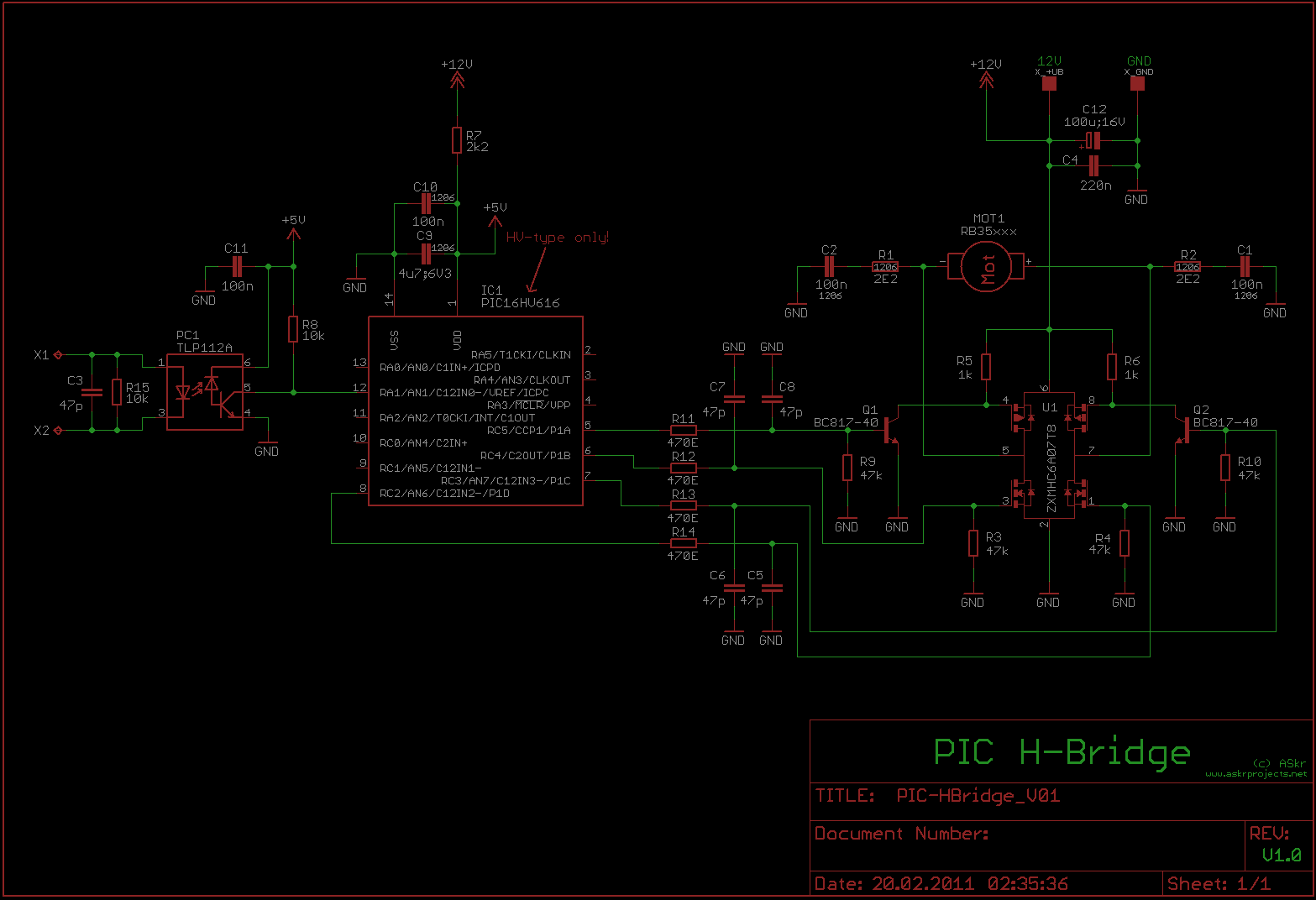

V1.0 schematic...

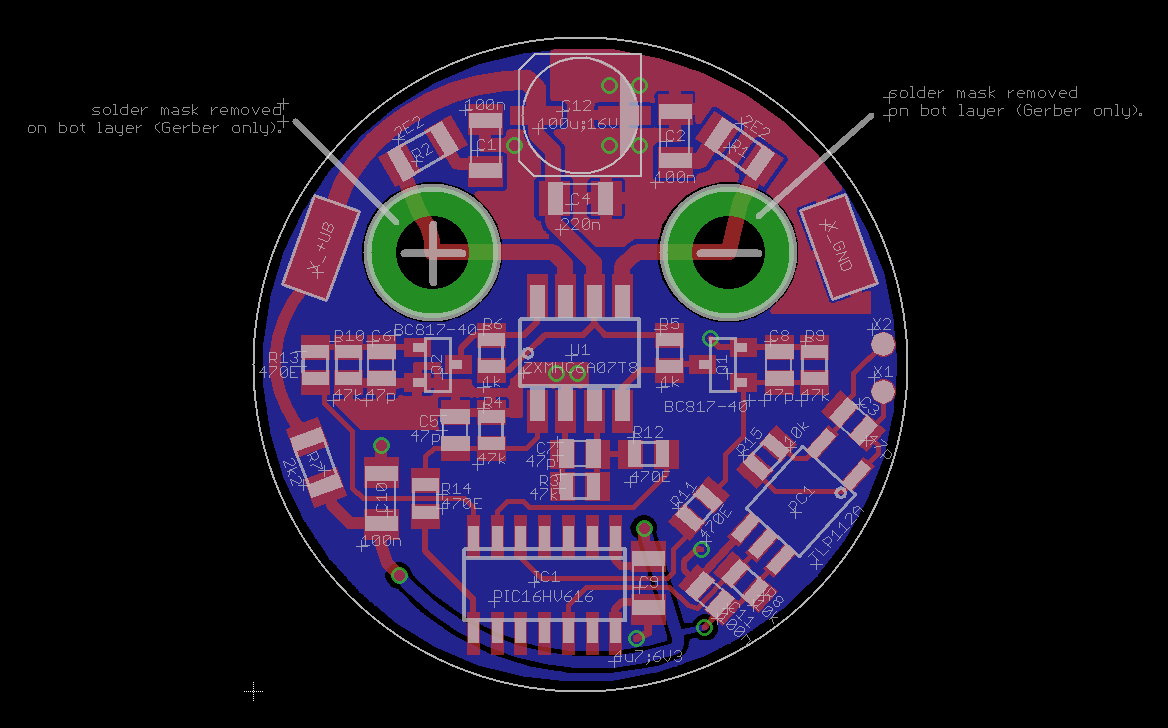

...and test layout...

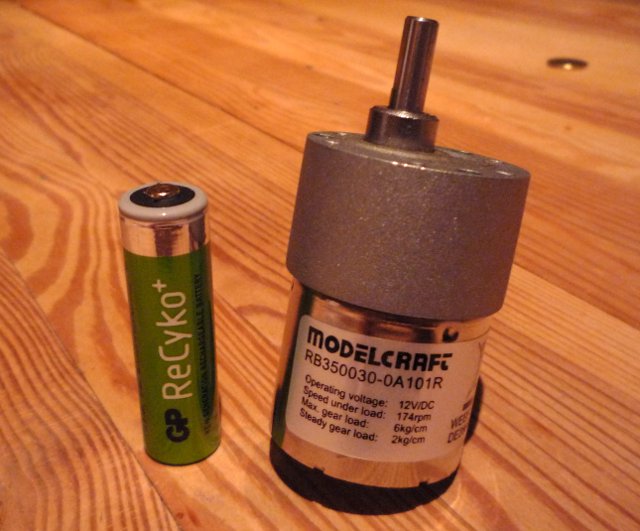

...for a standard motor...

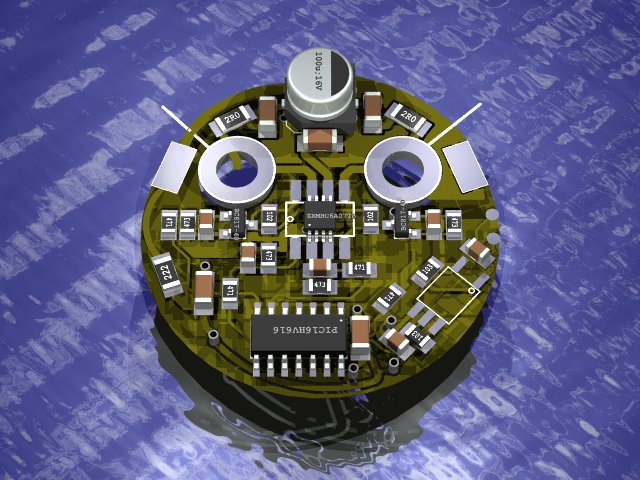

...and somehow "FR4less"

no text yet...

Firmware


S3rvoBridge

not uploaded yet...


CrowbarBridge

not uploaded yet...


Some Useless Pics

to be shot...


Download

MicroHBridge:

DOWNLOAD: MicroHBridge_hard_V10.zip Hardware, V1.0

PIC-HBridge:

DOWNLOAD: PIC-HBridge_hard_V10.zip Hardware, V1.0




ASkr 05/3005: old version on old pages
ASkr 12/2008: 2% made it to the new domain
ASkr 02/2011: 10% anti-pre-refactoring completed ;-)
