6mmm/s - A compact, kinetic energy meter (sometimes referred to as "chrono") for pea, foam dart or airsoft toys.

Features:

  • compact size
  • modular system
  • forgot the rest...


Source code is now on Github (3/2013):

click me


NO TEXT YET...
(and there probably never will be any...)

In the meantime, grab what you'll need or get along!



Hardware

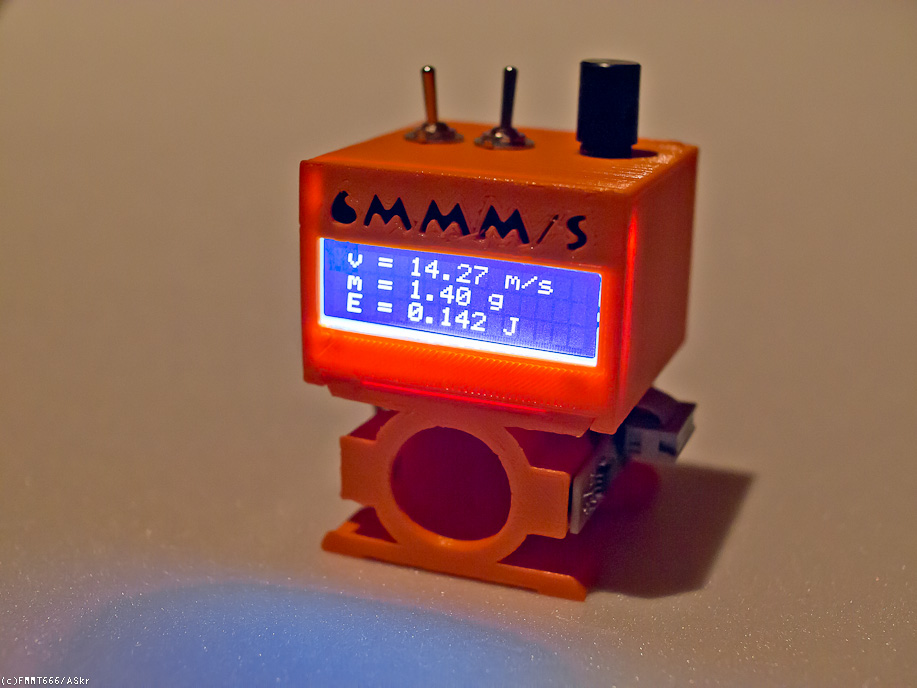

6mmm/s and (optional) display unit
the DUTs

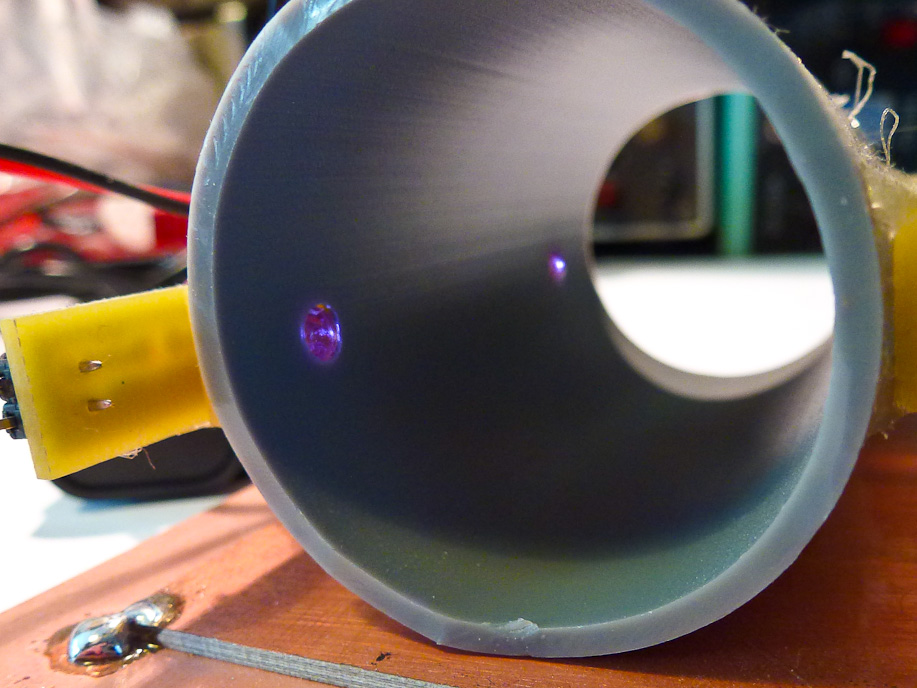

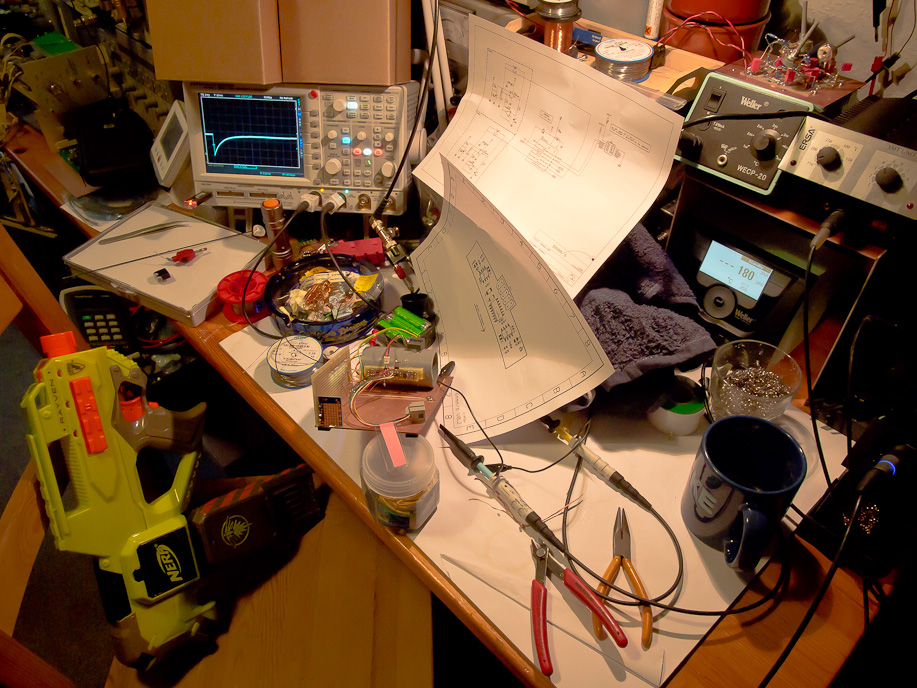

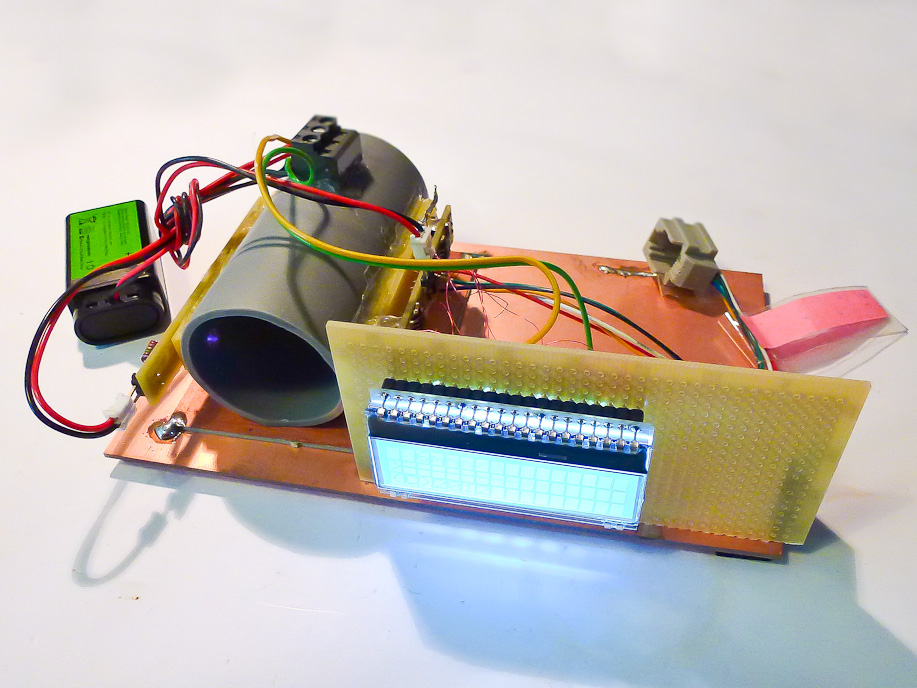

An early prototype...

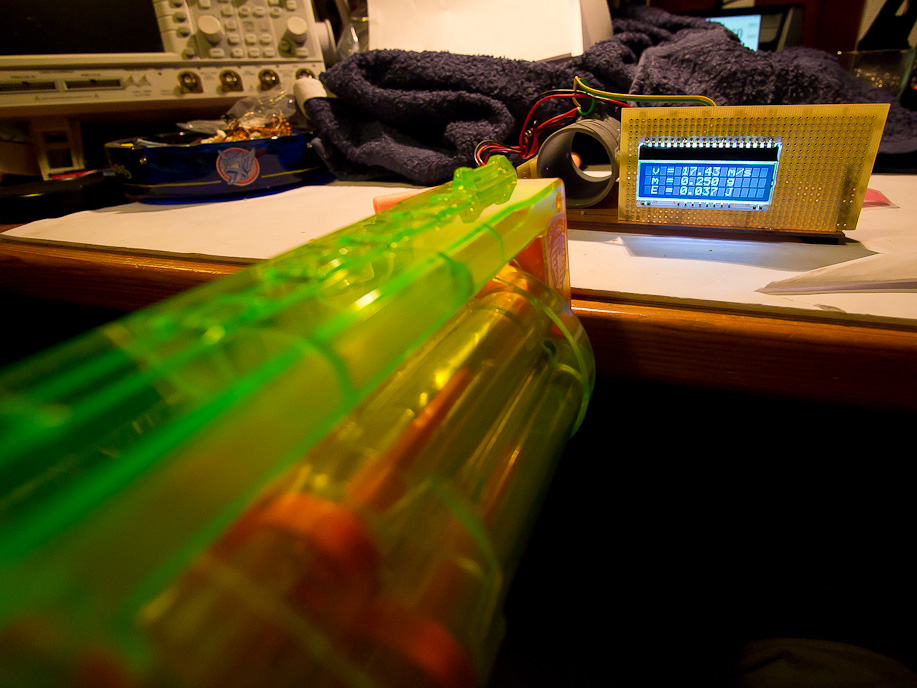

...under fire




Aquisition Board

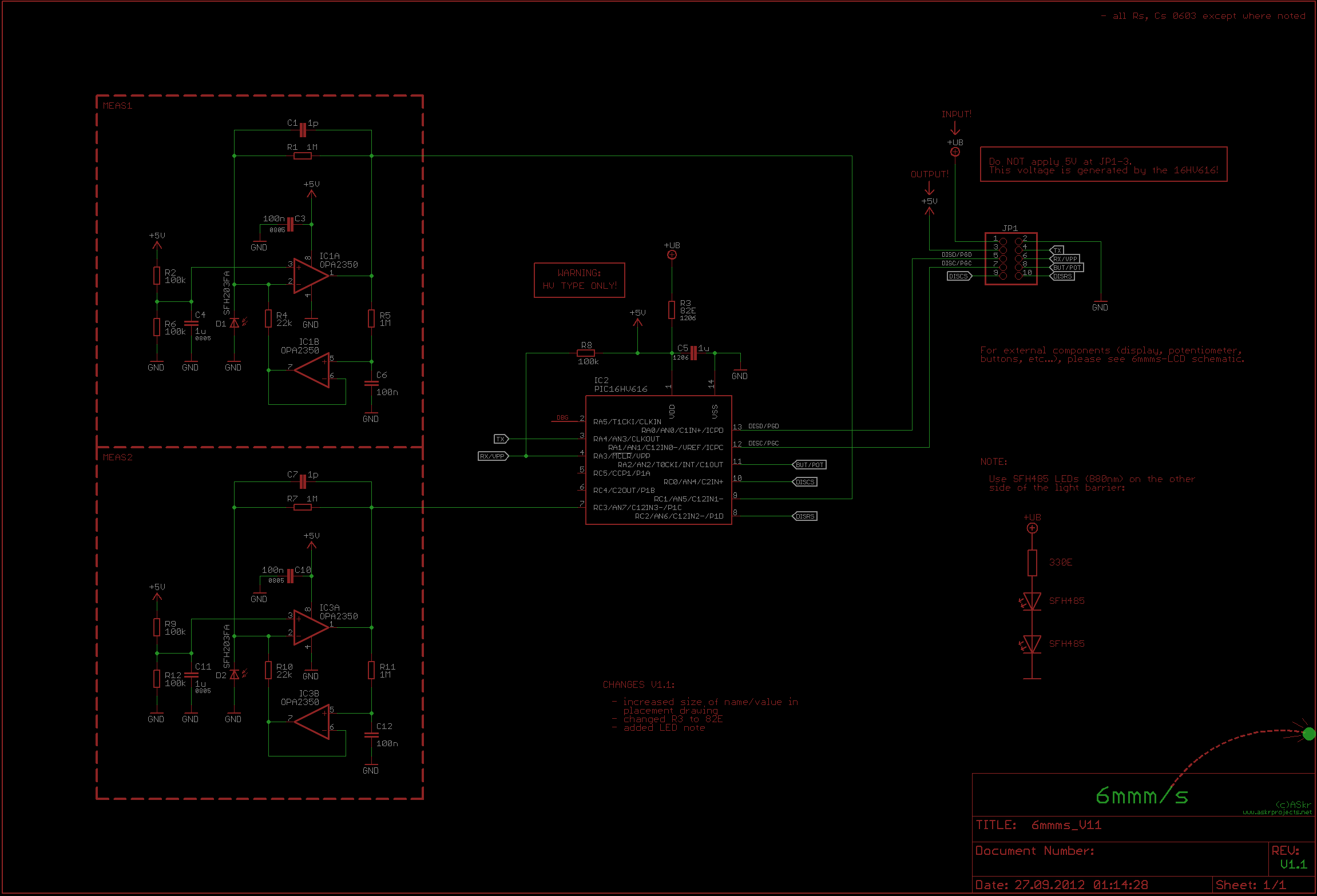

V1.1 schematic...

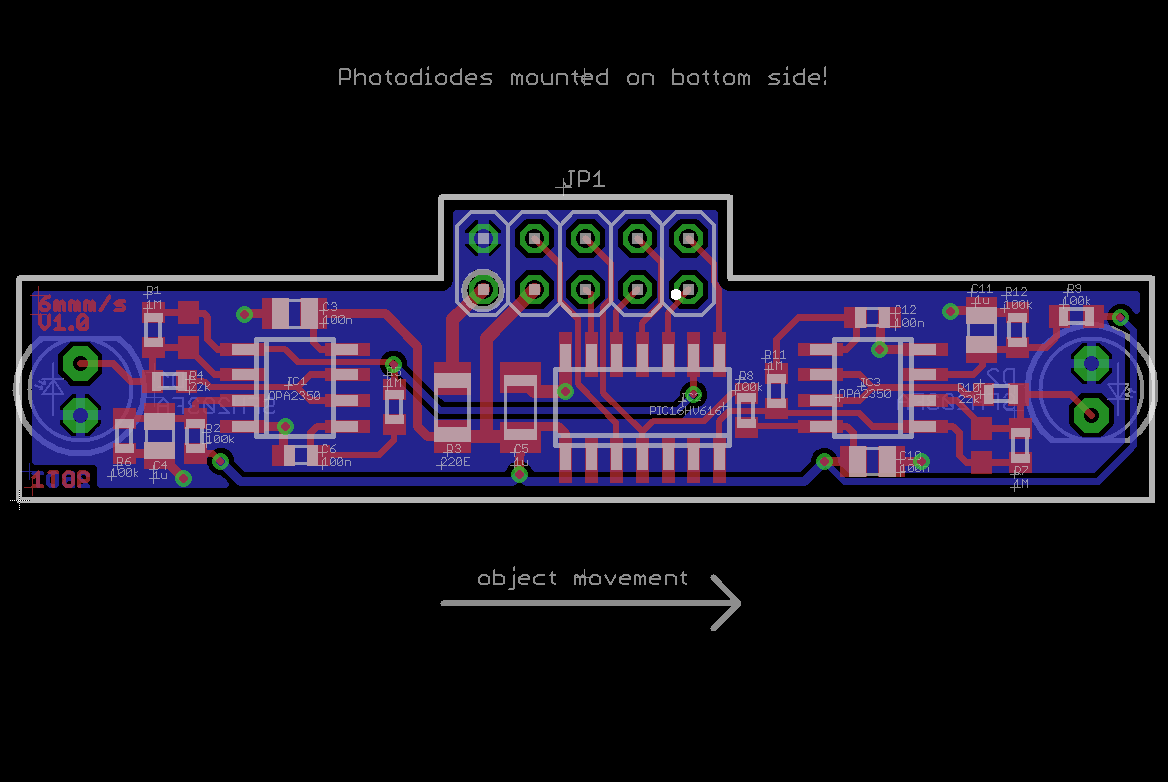

...and (an older) layout

to be written...


Display Section

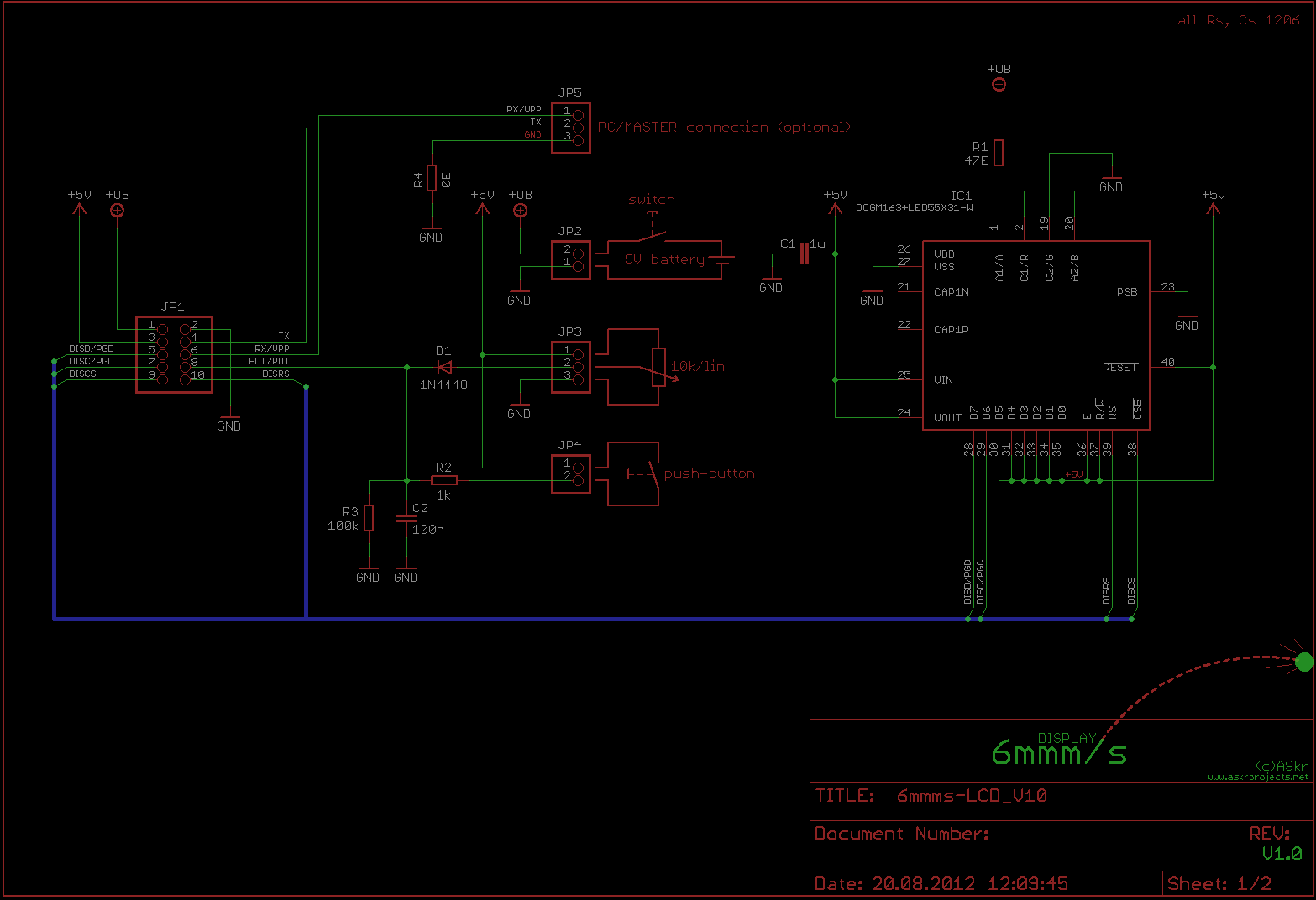

V1.0 schematic...

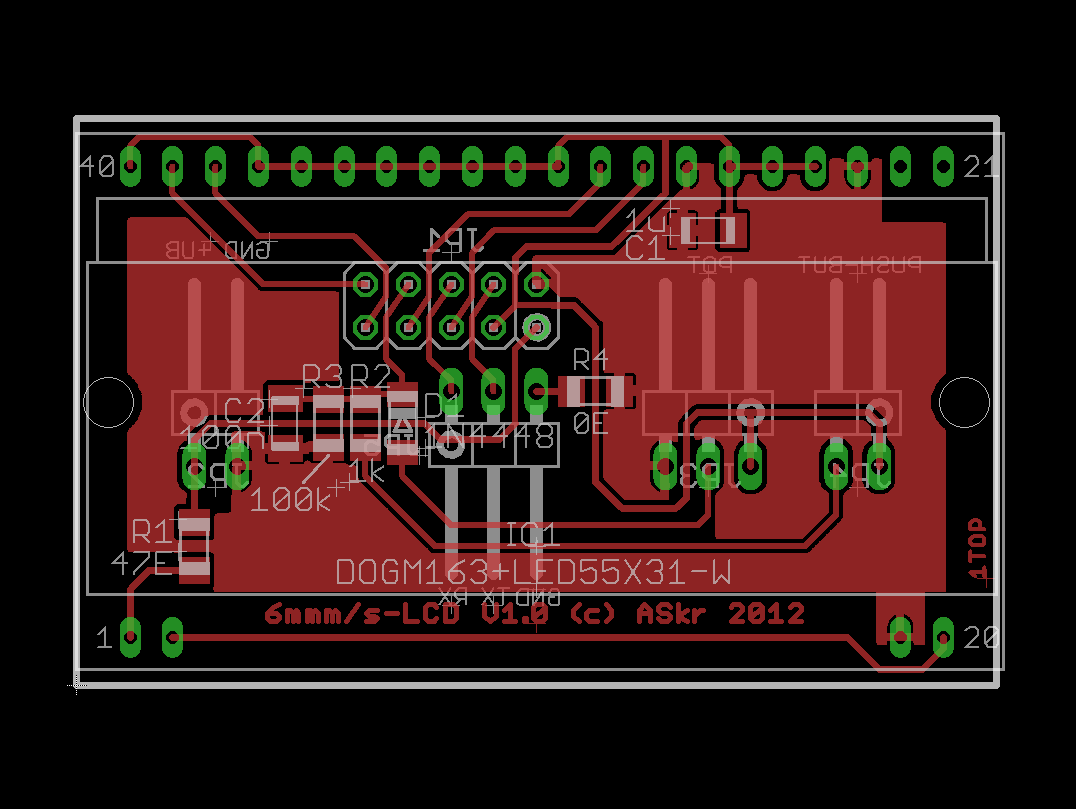

...and layout

to be written...

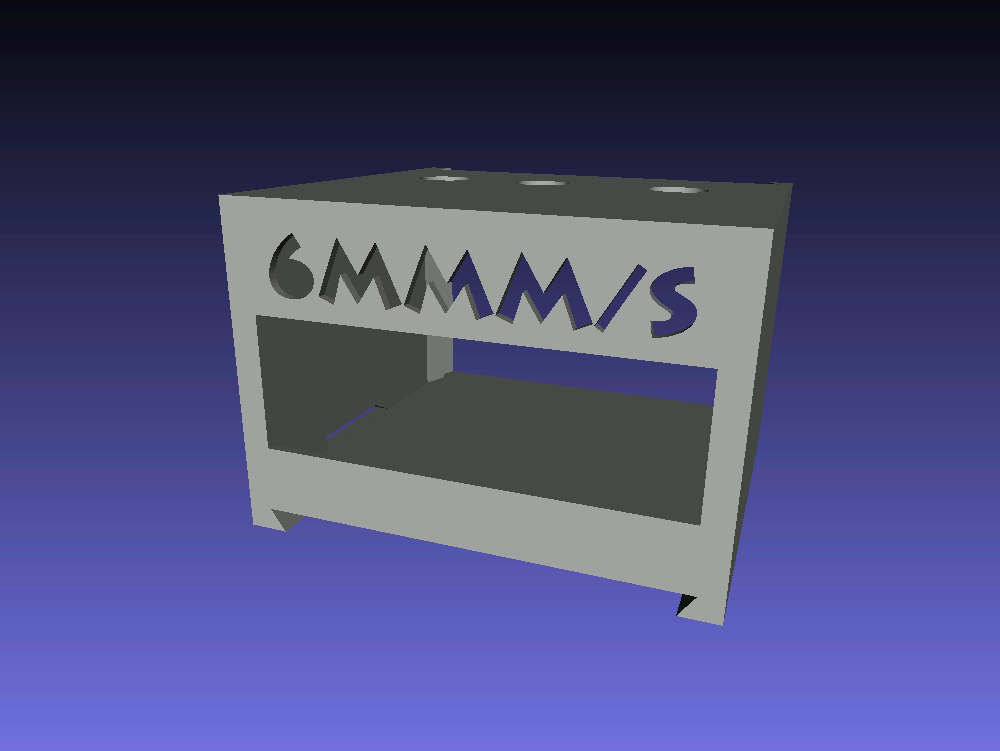

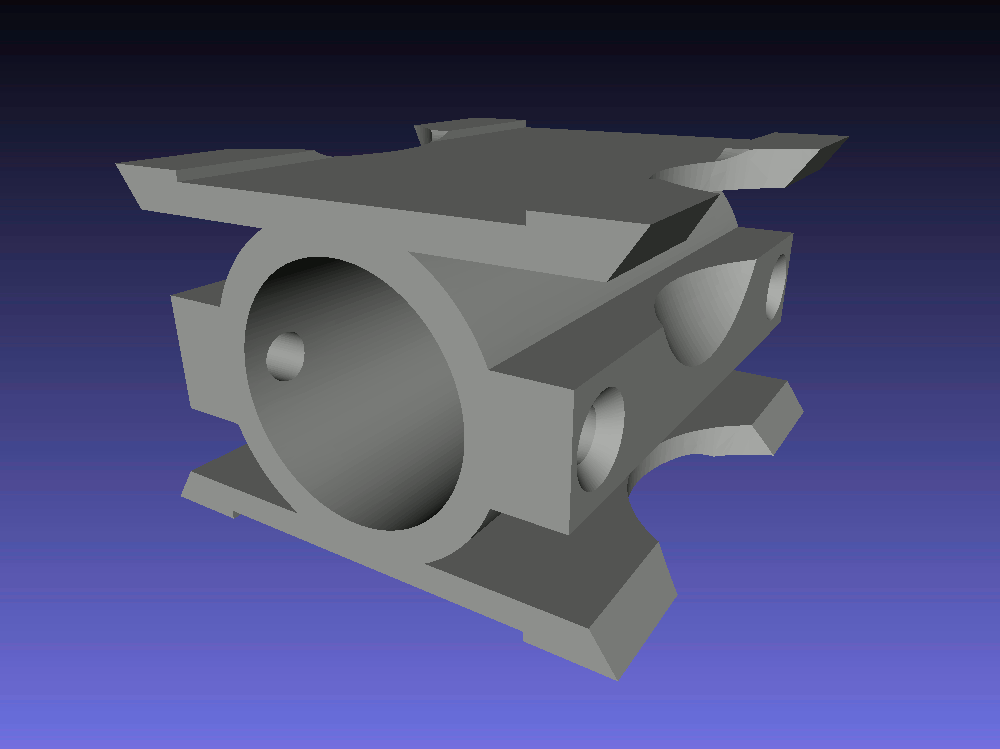

Mechanic




Firmware

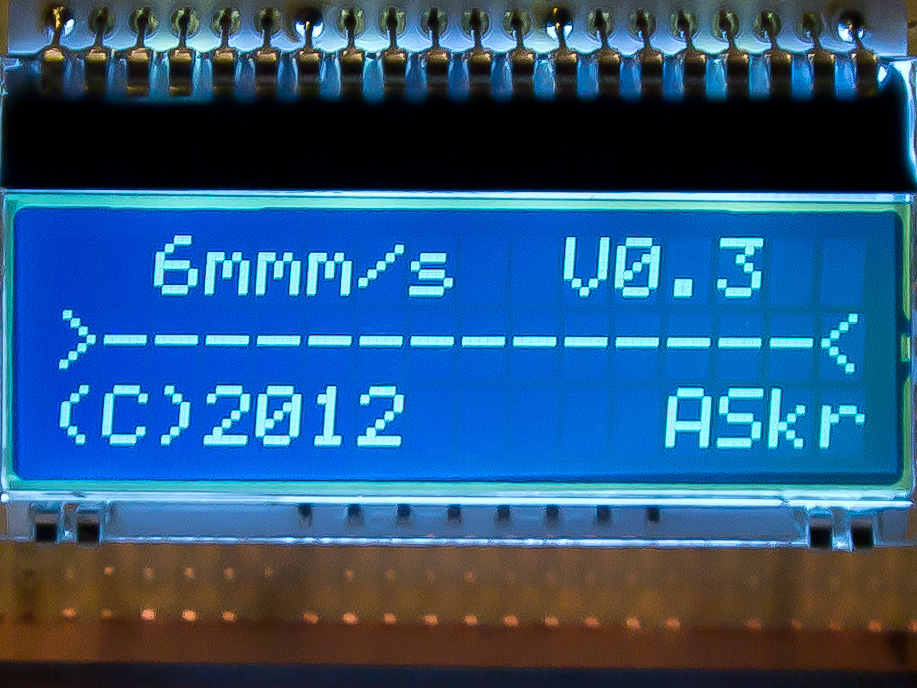

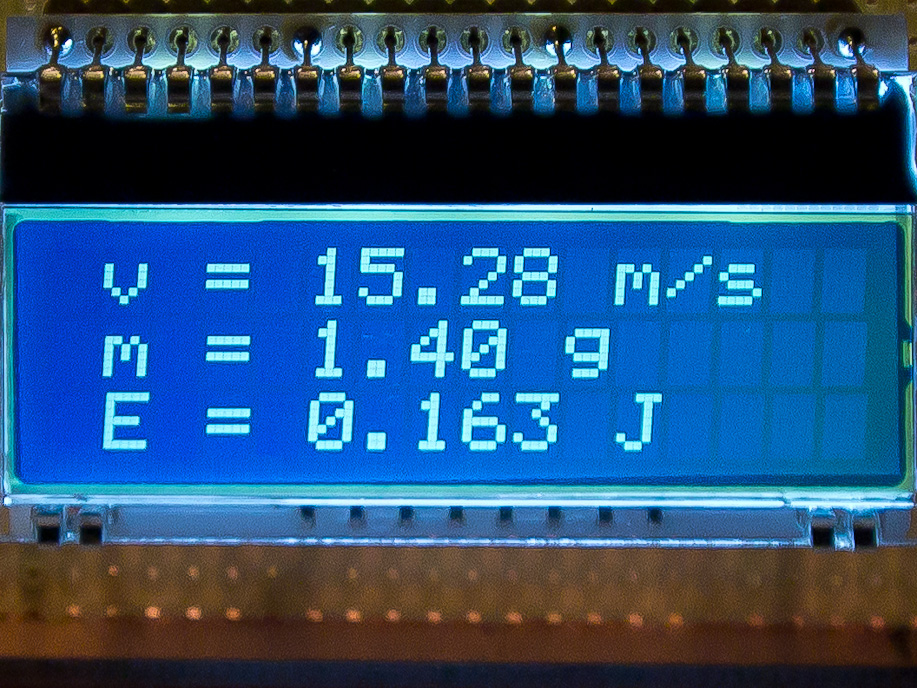

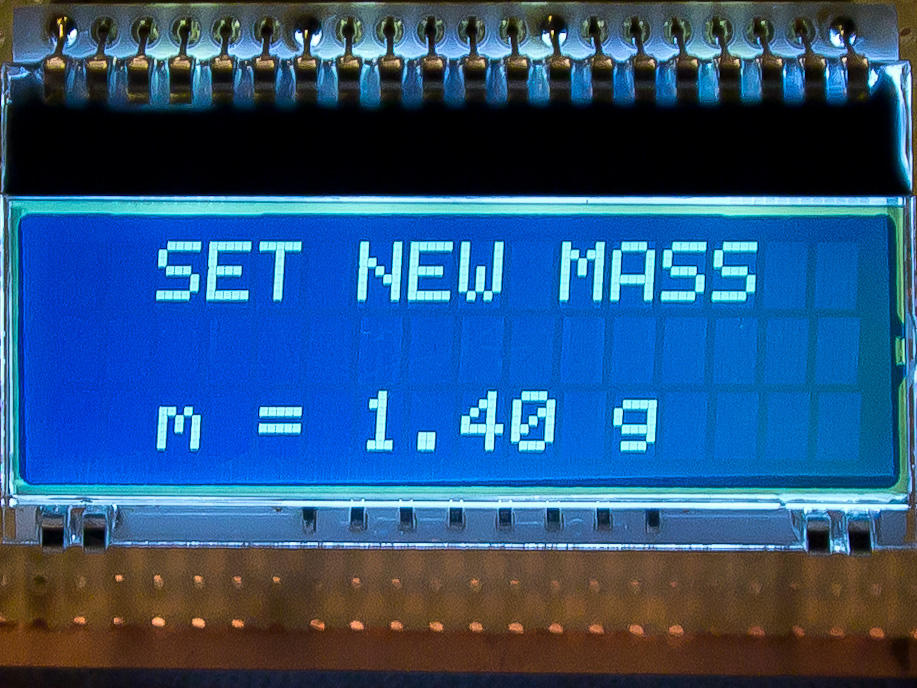

Standalone/Display Mode





Interface Mode

6mmm/s does not need the fancy LCD and can be operated without it.
No matter if the display is attached or not, the unit always transmits the following data via its serial TX line, at 9600 bits/s, 8N1:


   ---
    v = <speed> m/s
    m = <mass> g
    E = <energy> J


Same with invisible codes included:


   <CR><LF>---<CR><LF>
    v = <speed> m/s<CR><LF>
    m = <mass> g<CR><LF>
    E = <energy> J<CR><LF>


with the known substitutions:


   <CR> = 0x0D (13 decimal)
   <LF> = 0x0A (10 decimal)


Data reception ("RX") is not (yet) built in (and probably never will be in there).
It's not required. The receiving equipment needs nothing else but the velocity and should calculate the energy by its own...


Some Useless Pics

the IR LEDs

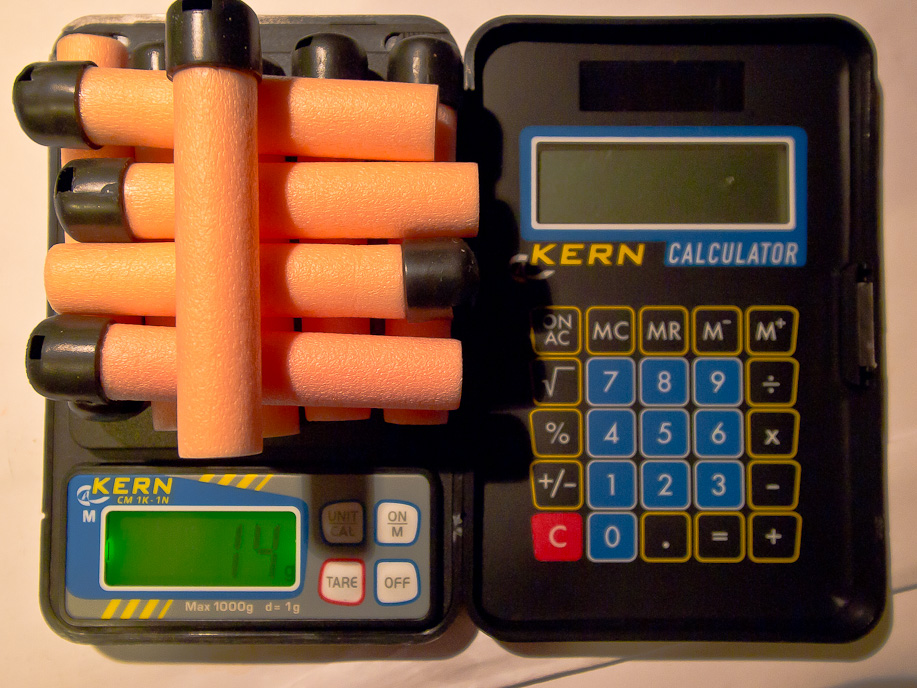

1.4g; Nerf whistler dart
need more space...

Do not forget to remove the RoHS stickers
BEFORE soldering the backlight...
(FUCT)


Download

6mmm/s:

Includes:
- schematic (PDF)
- layout (BRD)
- mechanic (STL)
- firmware (HEX)
- source code
- ...

DOWNLOAD: 6mmms_hard_V11.zip Hardware, Acquisition Board, V1.1
DOWNLOAD: 6mmms-LCD_hard_V10.zip Hardware, LCD-Board, V1.0
DOWNLOAD: 6mmms_mech_V10.zip Mechanic (for 3D printers), V1.0
DOWNLOAD: 6mmms_firm_V05.zip Firmware, V0.5
DOWNLOAD: source code on Github stay updated
DOWNLOAD: old page




ASkr 07/2012: initial public release
ASkr 09/2012: uploaded HW V1.1, FW V0.5, mechanics, more images
ASkr 02/2013: removed some typos, added Github source code link
